ECLYPSE 103 Series

Designed to control terminal units such as fan coil units, heat pump units, unit ventilators and chilled ceilings.

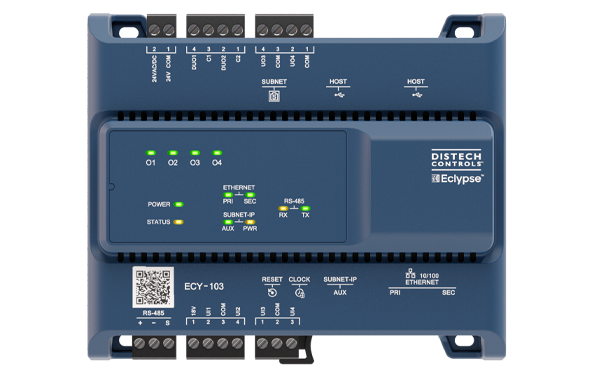

The Eclypse™ 103 (ECY-103) controller is designed to control terminal units such as fan
coil units, heat pump units, unit ventilators, and chilled ceilings. It supports BACnet/IP
communications and is listed BACnet Building Controller (B-BC).
These programmable controllers are powered by Eclypse Facilities and include two years
of Atrius Facilities - Organize. They feature an embedded visualization interface and
web server, which enables web-based application configuration, scheduling, alarming, and
logging. Control logic and graphic user interface can be customized as required for the
application.

Features & Benefits
• More compact architecture and flexible installation. Can be mounted vertically or
horizontally; perfect for panel retrofits or applications when limited horizontal space is
available.
• Flexible networking using options for isolated applications and fail-safe daisy-chaining
applications. Two Ethernet ports and an AUX port can be configured to create separate
networks.
• Software-configurable IOs reduce controller manipulation.
• Different communication protocols such as BACnet MS/TP, BACnet/SC, BACnet/IP,
MQTT, Modbus RTU, Modbus TCP, and M-Bus are supported to ensure ease of
communication, authentication, and error detection.
• Connectivity packs enable remote devices to be added to a connector in Eclypse
Facilities to provide flexibility and expandability to customize your project needs.
• Readily supports Atrius Facilities that simplifies installation and maintenance of systems
and increases the efficiency of building operations.
