Expandable controllers for large-sized equipment control applications including air handling units, chillers, boilers, pumps, cooling towers and central plants.

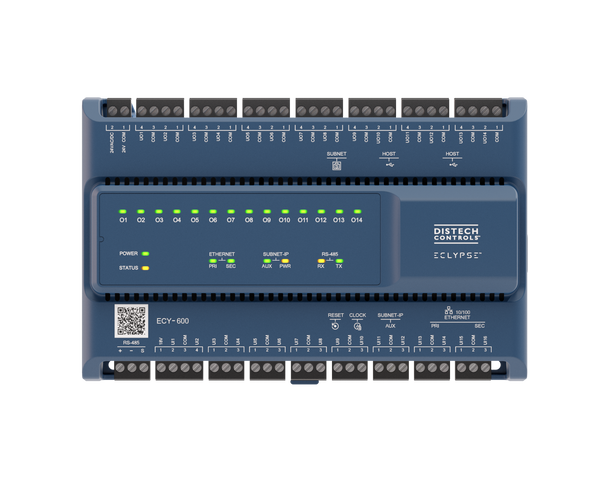

The ECY-600 Series controllers are designed to designed to control various building automation applications such as air handling units, chillers, boilers, pumps, cooling towers, and central plant applications. They support BACnet/IP communications and are listed BACnet Building Controllers (B-BC). This series supports the use of the ECYCOM modules as well at two additional ECY-IOM extension modules.
These programmable controllers come with an embedded web serverthat enables web-based application configuration and a visualization interface. They also feature embedded scheduling, alarming, and logging. Control logic and graphic user interface can be customized as required for the application.
Features & Benefits
ECLYPSE Series input/output and communication modules are supported, providing competitive I/O combinations, and supporting up to 62 I/O points (up to 1 communication module and 2 I/O modules).
More compact architecture and flexible installation. Can be mounted vertically or horizontally; perfect for panel retrofits or applications when limited horizontal space is available.

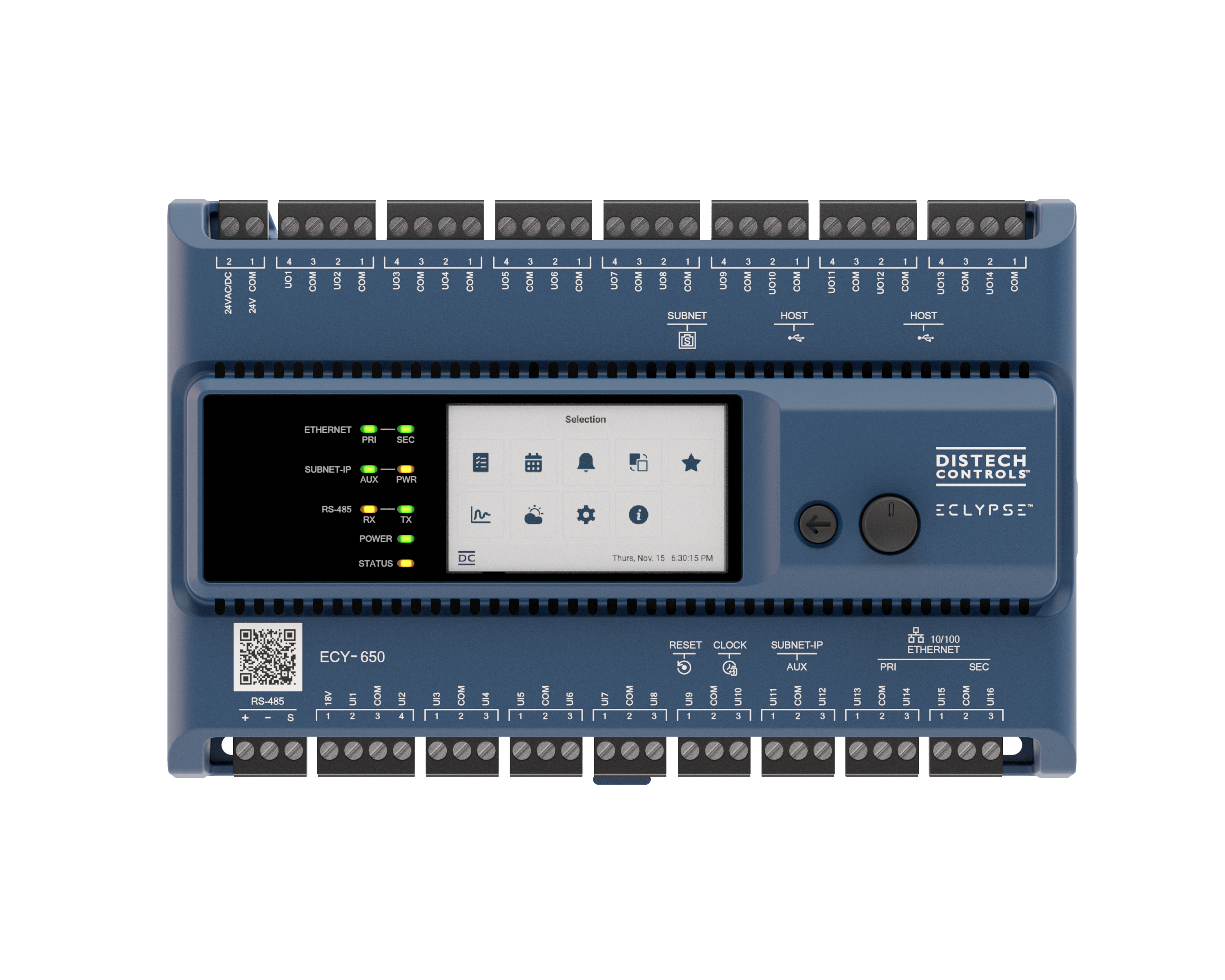

An optional full-color backlit display with jog dial provides direct access to a wide range of controller functions.
Flexible networking using options for isolated applications and fail-safe daisy-chaining applications. Two Ethernet ports and an AUX port can be configured to create separate networks.
Different communication protocols such as BACnet MS/TP, BACnet/ SC, BACnet/IP, MQTT, Modbus RTU, Modbus TCP, and MBus are supported to ensure ease of communication, authentication, and error detection.
Connectivity packs enable remote devices to be added to a connector in ECLYPSE Building Intelligence. The connectivity packs along with optional I/O and expansion modules provide ultimate flexibility and expandability to customize your project needs.
