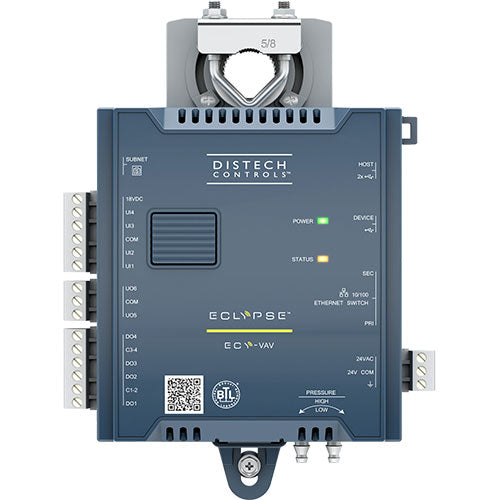

ECLYPSE Connected VAV Controller – ECY-VAV Series

Control any variable air volume application out of the box. Also features a model with power over Ethernet.

• Robust and compact design for your VAV applications
• 4 universal inputs with high precision 16-bit AD
• 4 digital outputs (Triac)
• 2 universal outputs
• Built-in differential pressure transducer featuring polarity insensitive/polarity-free connection
• Integrated damper actuator with brushless DC motor
• Configure pre-loaded applications with embedded ENVYSION or with an Allure™ EC-Smart-Vue communicating sensor, or fully customize with EC-gfxProgram
• Model with Power over Ethernet - A single cable to provide both data and power, significantly simplifying installation and maintenance, and reducing related costs
• Integrated fail-safe feature allowing for increased redundancy and reliability in your IP-wired daisy chain: in case of power failure to one controller, communication data is still relayed to the following controller on the daisy-chain
• Supports Smart Room Control solution, for a unified, end-to-end solution for the control of HVAC, lighting, and shades/sunblind
• Supports "direct connection" to EC-gfxProgram, graphical programming interface, and mobile apps
• Available with embedded ENVYSION, web-based graphic design and visualization interface, for hosting of system-based graphics, and visualization of schedules, alarms, and trend logs directly from the controller
• Daisy-chain up to 4 Allure series communicating sensors via the dedicated subnet port
