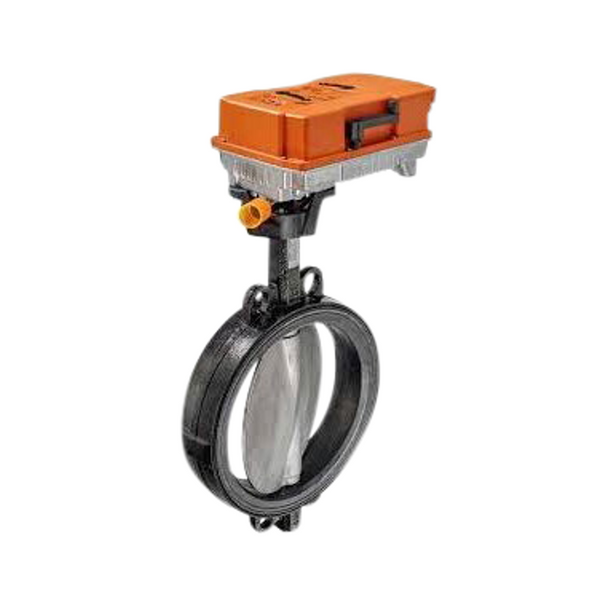

Belimo Butterfly Valve - Wafer Type Flange - DN200 - DN300

Butterfly Valve for Open and Closed cold and warm water systems.

• 200mm to 300mm DN
• Cold & warm water with Glycol up to max. 50% volume
• Medium temperature : -20....120°C
• Leakage Rate A, tight (EN 12266-1)
• Connection Flange : in accordance with ISO 7005-2  PN6/10/16 .
• Permissible pressure : 1600kPa
• Closing element : 304 stainless steel
